Danfoss DGMDC-3 / DGMDC-5 Hydraulic Direct Check Valve
Compact modular hydraulic check valves for reliable one-way flow control, reverse-flow protection and efficient hydraulic manifold installation.
Danfoss DGMDC Hydraulic Check Valve Overview

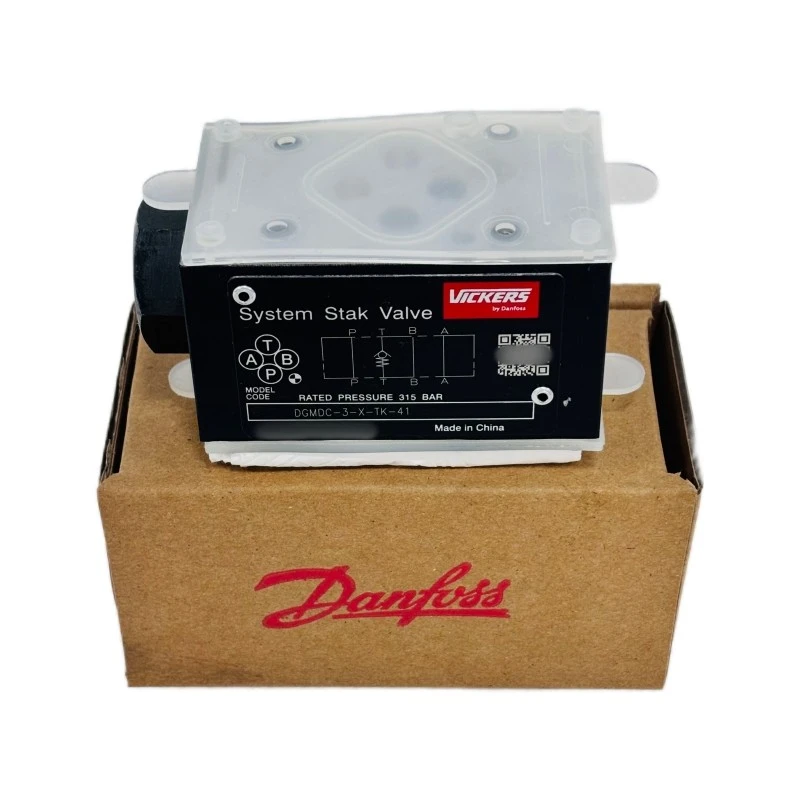

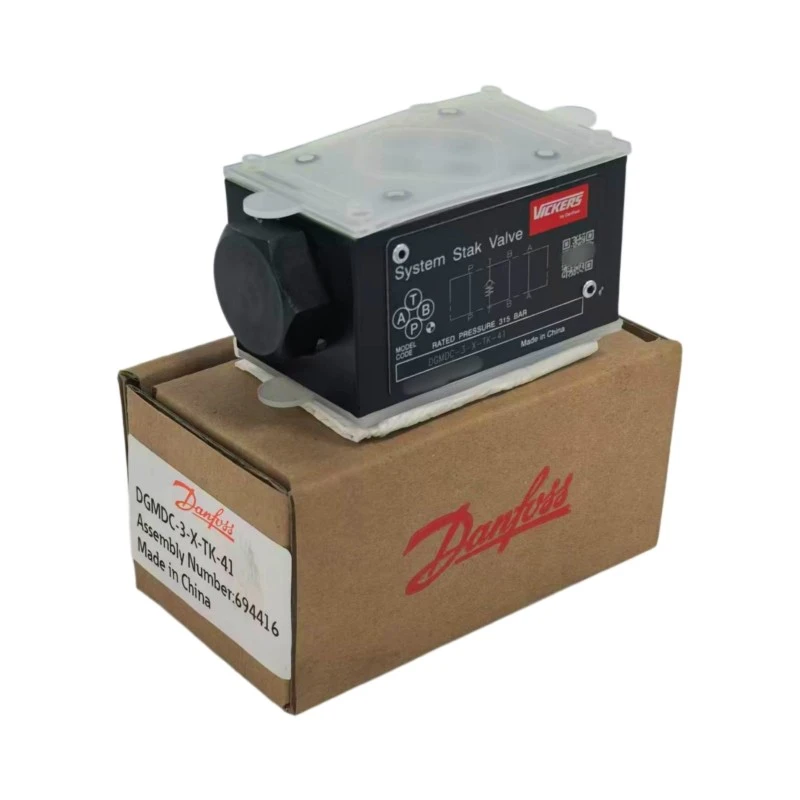

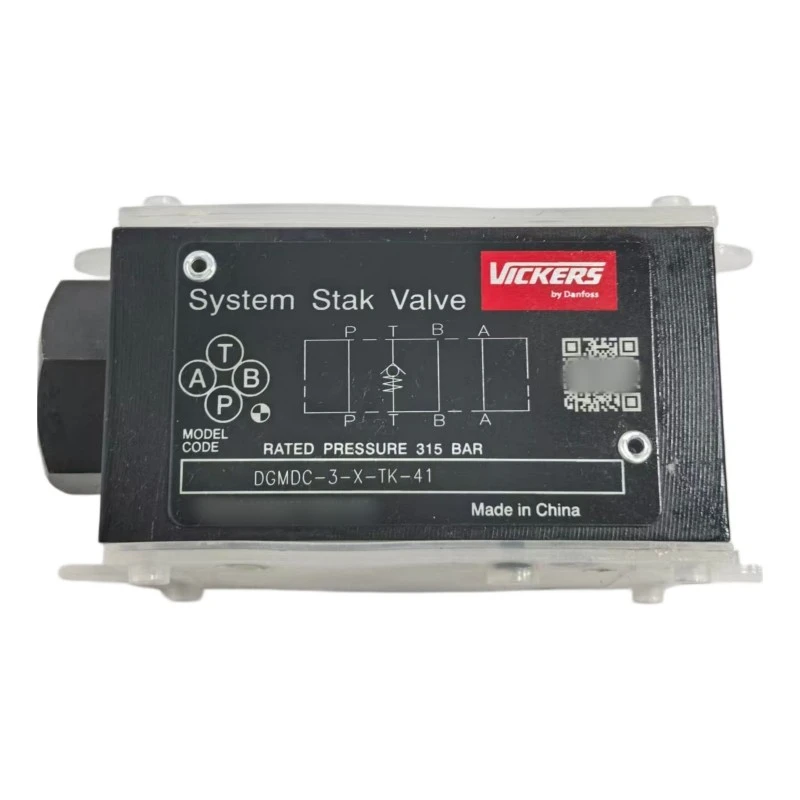

The Danfoss DGMDC-3 and DGMDC-5 hydraulic check valves are SystemStak modular direct check valves designed for dependable one-direction hydraulic flow control. They are used to allow hydraulic fluid to pass in the required direction while helping prevent unwanted reverse flow within the circuit.

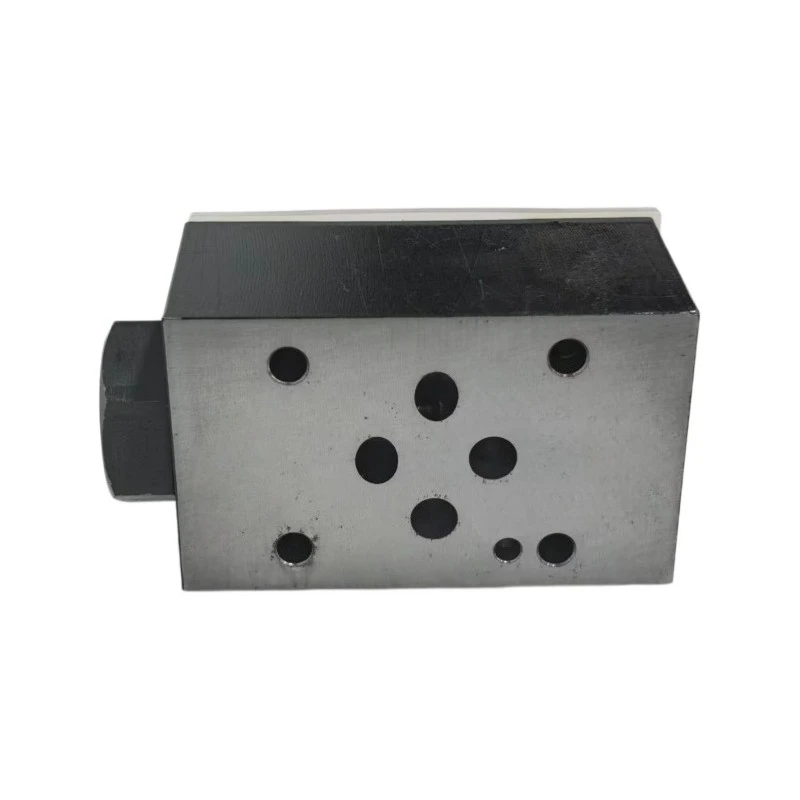

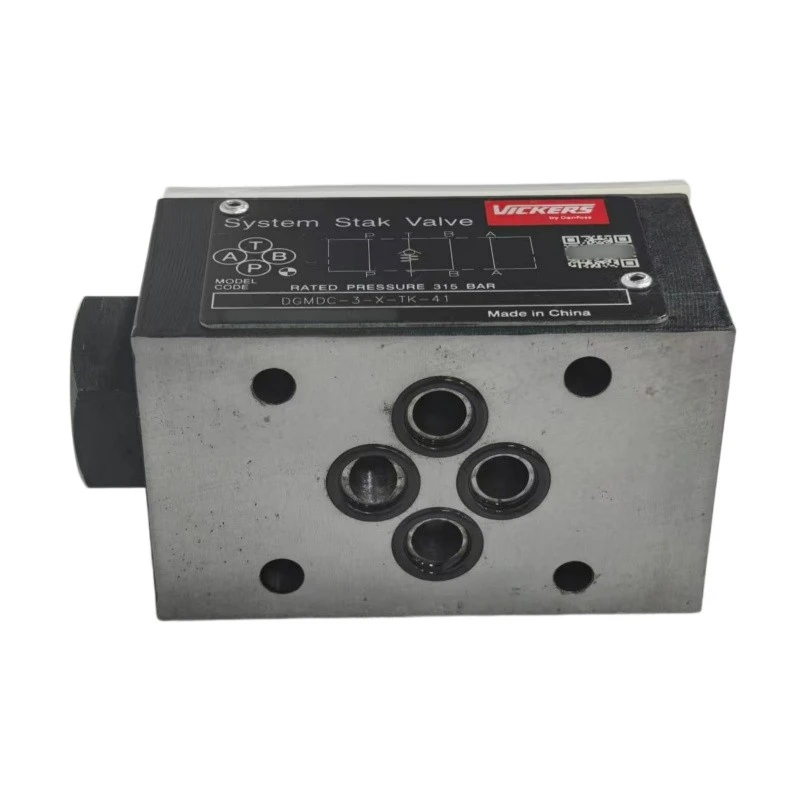

The DGMDC-3 is designed around the ISO 4401-03 mounting configuration, while the DGMDC-5 uses the ISO 4401-05 configuration. Their sandwich-style modular construction allows the hydraulic check valve to be installed between other valve sections and a manifold or subplate.
These Danfoss modular check valves are suitable for hydraulic power units, industrial machinery, hydraulic presses, material handling equipment, hydraulic cylinders, actuators and other demanding hydraulic systems.
Key Advantages of DGMDC Hydraulic Check Valves
Reliable One-Way Flow
Provides dependable hydraulic flow direction control and helps prevent reverse flow in hydraulic circuits.
Compact Modular Design
SystemStak sandwich construction saves installation space and simplifies integration into hydraulic manifolds.
Flexible Configuration
Different valve configurations and cracking pressure options allow the DGMDC series to match different hydraulic circuit requirements.
Industrial Applications
Designed for hydraulic power units, industrial machinery, presses, material handling systems and mobile equipment.
How DGMDC Hydraulic Check Valve Works
Hydraulic pressure reaches the valve inlet and acts on the internal check element.
When the required pressure condition is reached, the check element permits flow through the selected direction.
Reverse pressure causes the check element to close and restrict unwanted reverse hydraulic flow.
Applications & Equipment
Flow control and circuit protection.
Reliable one-way hydraulic flow.
Compact modular valve integration.
Hydraulic actuator circuit protection.
Hydraulic flow direction control.
Reliable hydraulic circuit control.
How to Select DGMDC-3 or DGMDC-5
Select the correct DGMDC model according to the required mounting interface, flow capacity, valve configuration, cracking pressure, hydraulic fluid and operating pressure.
Confirm ISO 4401-03 or ISO 4401-05.
Select the appropriate valve size for system flow.
Confirm the required spring/check setting.
Verify compatibility with the hydraulic medium.
Danfoss DGMDC Valve Supplier for Global B2B Buyers
PinXin Hydraulics supplies DGMDC-3 and DGMDC-5 hydraulic check valves for international OEM manufacturers, hydraulic distributors, system integrators, maintenance companies and industrial equipment users.
We support hydraulic valve replacement, spare parts sourcing, bulk purchasing and hydraulic system projects. Contact our sales team to confirm the complete model number, technical specifications, availability and competitive quotation.
DGMDC-3 / DGMDC-5 FAQ
What is a Danfoss DGMDC valve?DGMDC is a SystemStak modular direct check valve designed for one-way hydraulic flow control and reverse-flow protection.
What is the difference between DGMDC-3 and DGMDC-5?DGMDC-3 uses the ISO 4401-03 / D03 mounting configuration, while DGMDC-5 uses the ISO 4401-05 / D05 configuration.
Can I buy DGMDC valves for replacement applications?Yes. DGMDC-3 and DGMDC-5 can be sourced for hydraulic equipment maintenance, replacement and spare parts requirements.
*Actual pressure, flow and configuration depend on the complete valve model, circuit conditions and manufacturer specifications. Confirm the full model code before ordering.
