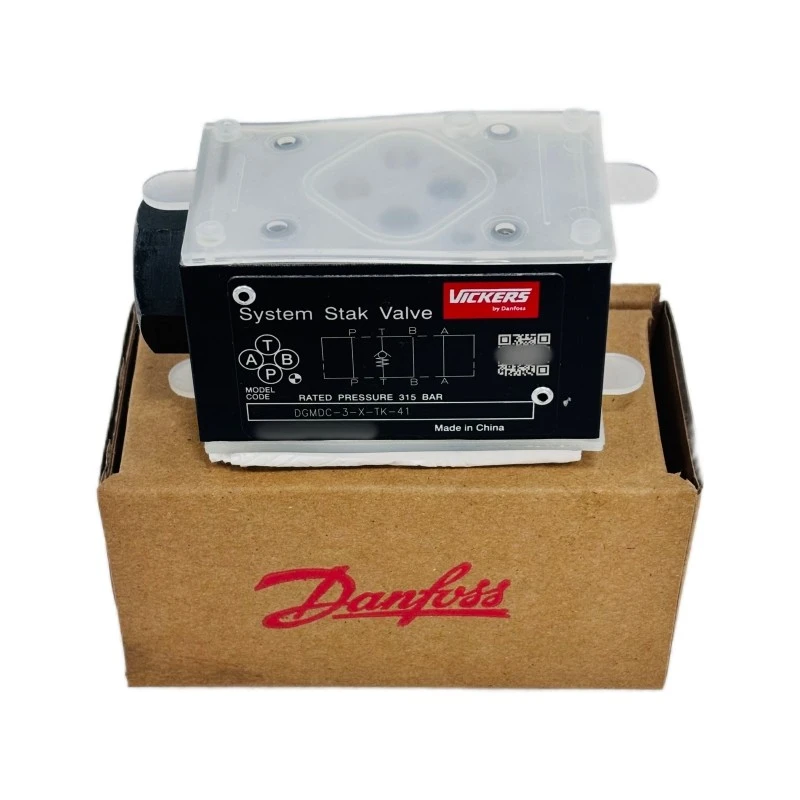

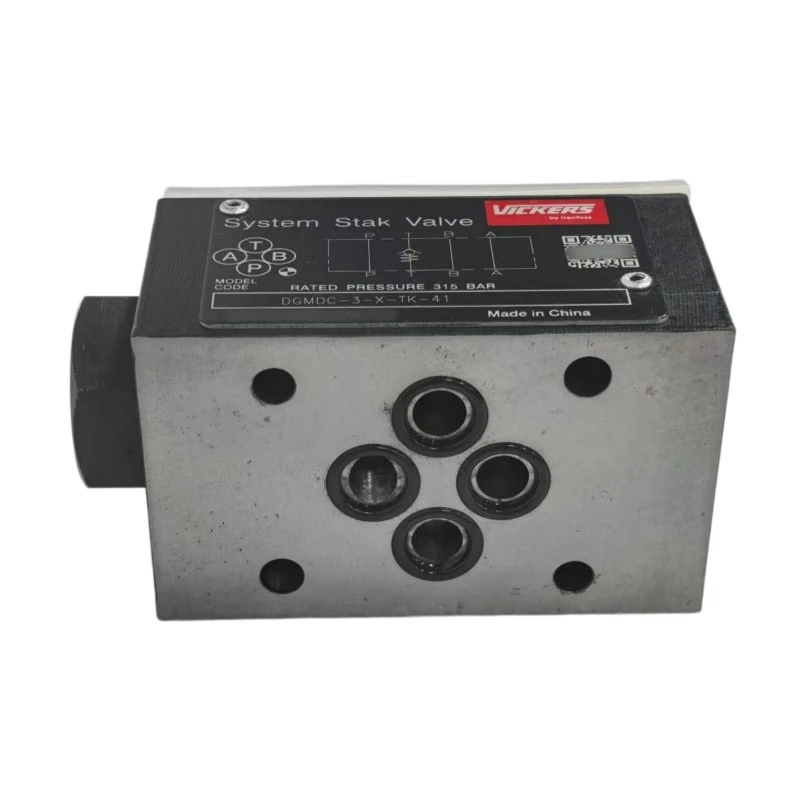

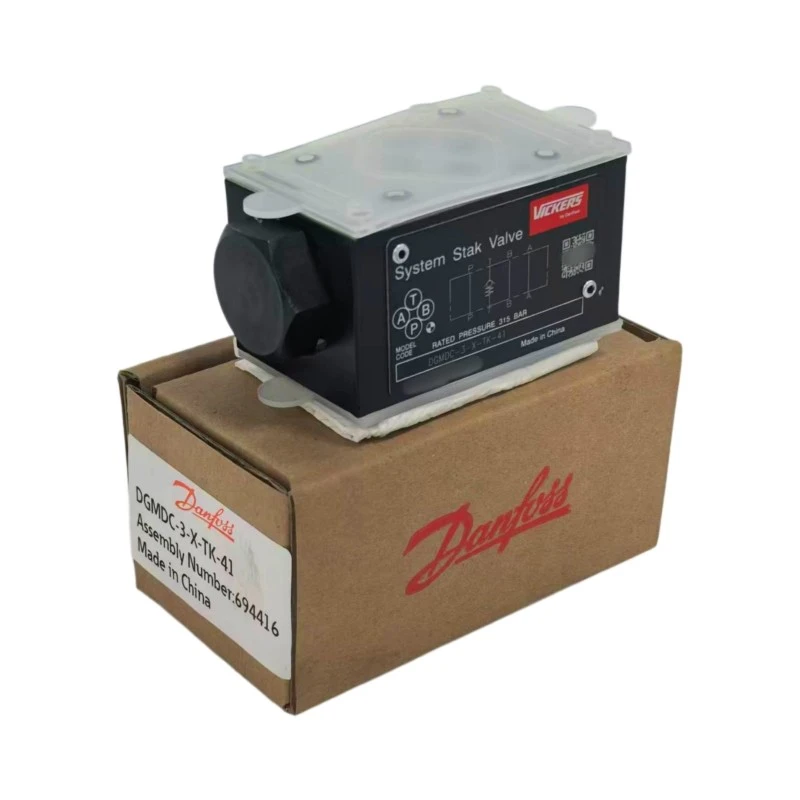

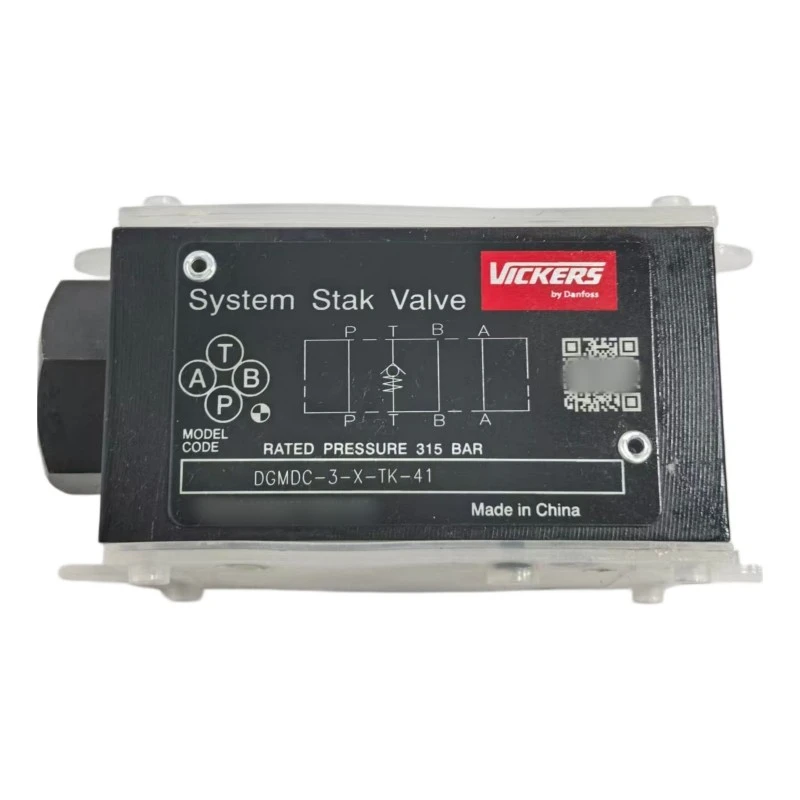

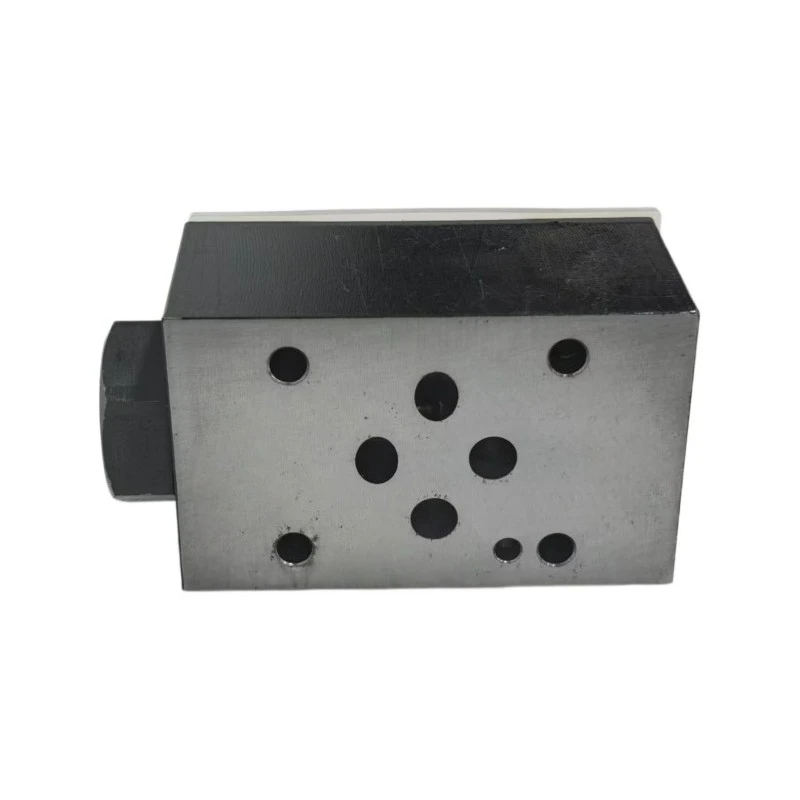

Danfoss DGMDC-3 / DGMDC-5 Hydraulic Direct Check Valve
Modular hydraulic check valves for one-way flow control, reverse-flow protection and compact integration into industrial hydraulic systems.
Compact Check Valve for Modern Hydraulic Circuits
Danfoss DGMDC-3 and DGMDC-5 are direct-operated SystemStak hydraulic check valves designed to control hydraulic fluid in one direction and restrict reverse flow.
Their modular sandwich construction allows the valve to be integrated into a stacked hydraulic manifold. This design is useful when equipment manufacturers require a compact hydraulic valve solution with fewer external connections.
ISO 4401-03 / D03
ISO 4401-05 / D05
DGMDC Series Specification Highlights
One-way hydraulic flow control
D03 mounting configuration
D05 mounting configuration
Configuration dependent
Technical Configuration
| Parameter | DGMDC-3 | DGMDC-5 |
|---|---|---|
| Valve Design | SystemStak Modular | SystemStak Modular |
| Valve Type | Direct Check Valve | Direct Check Valve |
| Interface | ISO 4401-03 | ISO 4401-05 |
| Mounting | D03 | D05 |
| Installation | Manifold / Subplate | Manifold / Subplate |
| Maximum Pressure | Up to 315 bar* | Up to 315 bar* |
How the DGMDC Check Valve Controls Hydraulic Flow
When hydraulic pressure acts in the permitted flow direction, the internal check mechanism opens to allow fluid to pass through the valve.
When pressure attempts to reverse the flow direction, the internal check element closes and restricts unwanted return flow. This makes the DGMDC suitable for hydraulic circuits where directional flow control is required.
Hydraulic pressure reaches the valve.
The check mechanism permits the required flow.
The valve restricts unwanted reverse flow.
Why Choose DGMDC-3 / DGMDC-5?
Compact Installation
The sandwich valve structure helps reduce installation space and supports clean hydraulic manifold design.
Flow Direction Control
Provides reliable one-way hydraulic flow and helps protect circuits from undesired reverse flow.
System Integration
Designed for integration into modular hydraulic valve stacks, manifolds and compact power units.
Maintenance Friendly
Suitable for hydraulic equipment repair, replacement valve sourcing and industrial spare parts procurement.
Industrial Applications & Equipment
DGMDC hydraulic check valves can be integrated into many hydraulic systems where compact construction and dependable flow control are required.
Compact valve stack and circuit protection.
Cylinder and actuator flow management.
Industrial hydraulic circuit control.
Hydraulic actuator protection.
Mobile hydraulic system applications.
Hydraulic control and automation equipment.
Integration into customized hydraulic systems.
Replacement and spare parts applications.
DGMDC-3 or DGMDC-5: Which One Should You Choose?
Choose DGMDC-3 When
- Your system requires an ISO 4401-03 / D03 interface.
- The hydraulic circuit is designed around the smaller valve size.
- Compact hydraulic manifold installation is important.
Choose DGMDC-5 When
- Your system requires an ISO 4401-05 / D05 interface.
- A larger hydraulic valve configuration is required.
- The equipment requires higher flow capacity than DGMDC-3 applications.
Global B2B Supply of Danfoss Hydraulic Components
PinXin provides hydraulic components and replacement solutions for overseas OEM manufacturers, distributors, hydraulic system integrators and equipment maintenance companies.
Our product sourcing service covers hydraulic valves, pumps, motors and related components for industrial hydraulic systems. Buyers can contact PinXin for model verification, replacement sourcing, project requirements and competitive B2B quotations.
✓ Bulk hydraulic valve orders
✓ Spare parts sourcing
✓ Model number verification
✓ International quotation support
Frequently Asked Questions
DGMDC-3 is a SystemStak direct check valve using an ISO 4401-03 / D03 mounting configuration for one-way hydraulic flow control.
DGMDC-5 is a larger SystemStak direct check valve designed around the ISO 4401-05 / D05 mounting configuration.
It permits hydraulic flow in the required direction and restricts unwanted reverse flow within the hydraulic circuit.
Typical applications include industrial machinery, hydraulic presses, power units, material handling equipment, automation systems and mobile hydraulic equipment.
PinXin supports hydraulic component sourcing for replacement, maintenance, OEM projects and bulk B2B purchasing.
