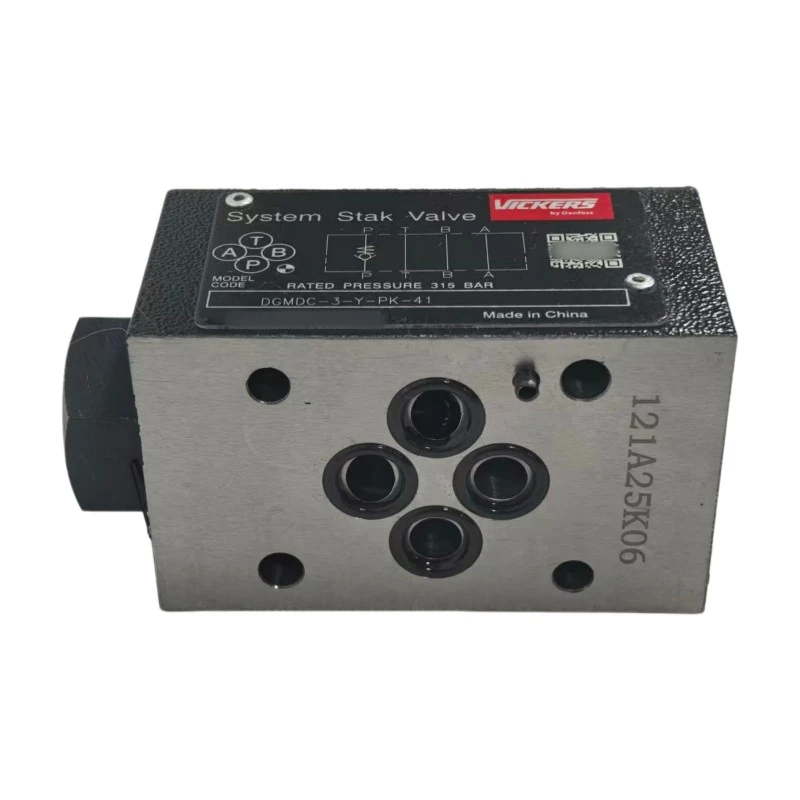

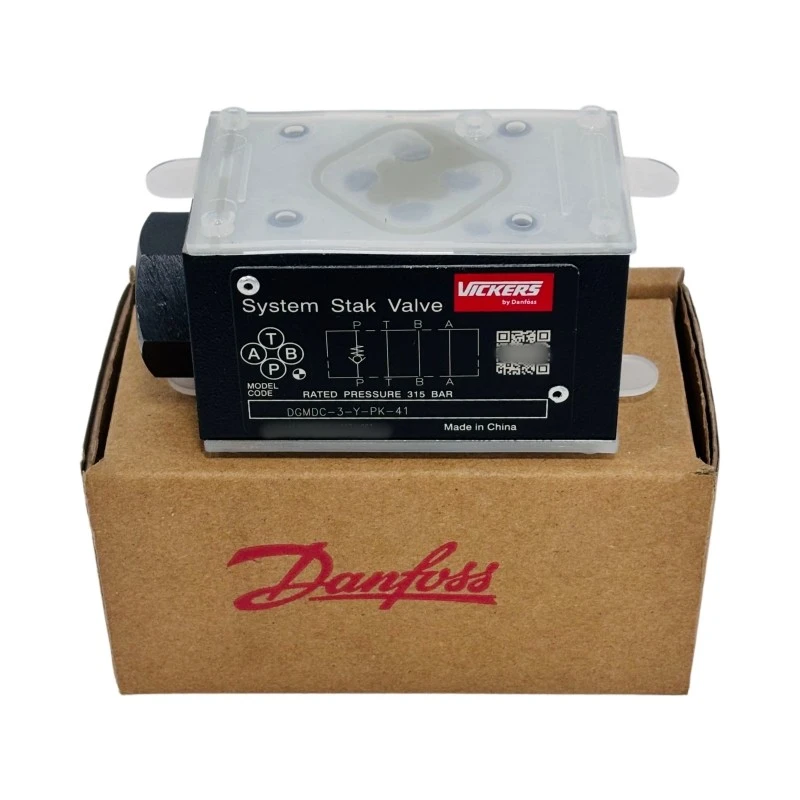

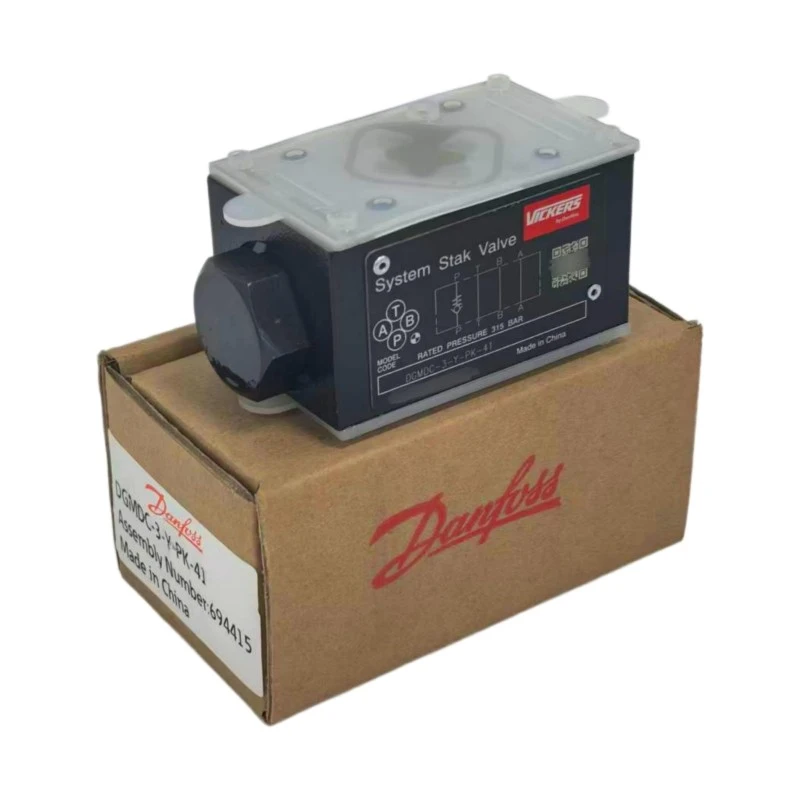

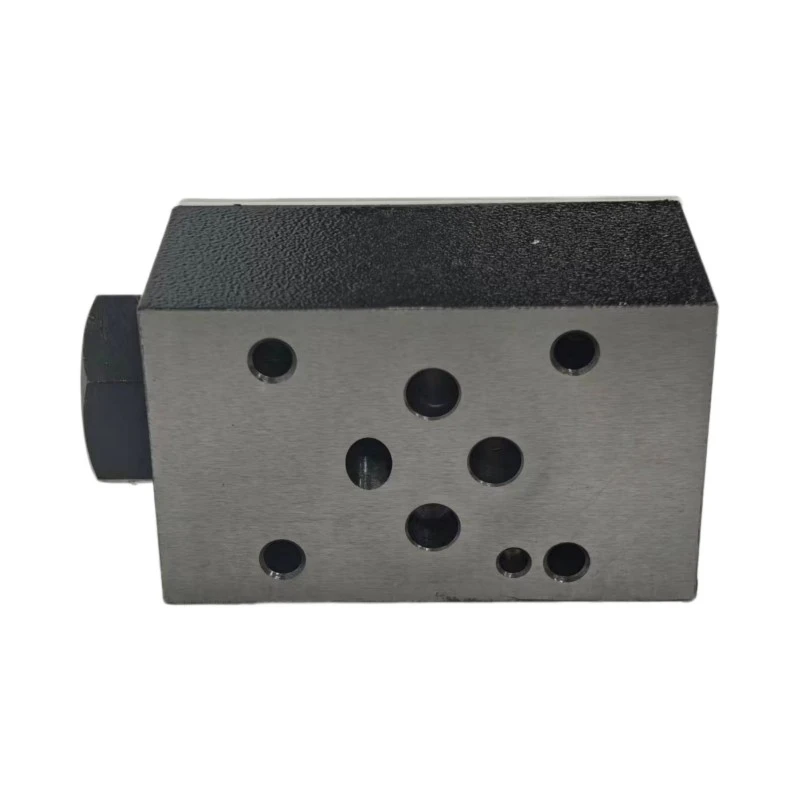

Danfoss SystemStak modular hydraulic valve.
Modular Hydraulic Check Valve for Industrial Systems
The Danfoss DGMDC-3 and DGMDC-5 are direct-operated hydraulic check valves designed to control one-way fluid flow and limit unwanted reverse flow.
As part of the SystemStak modular valve concept, the DGMDC series can be installed in a stacked hydraulic manifold configuration. This provides a compact alternative to conventional inline valve installation.
The series is suitable for hydraulic power units, industrial machinery, hydraulic presses, material handling systems, machine tools and hydraulic actuator circuits.
DGMDC-3 or DGMDC-5?
DGMDC-3
D03Designed for hydraulic systems using the ISO 4401-03 mounting interface.
- ISO 4401-03 interface
- D03 mounting configuration
- Compact modular design
- Industrial hydraulic applications
DGMDC-5
D05Designed for hydraulic systems using the ISO 4401-05 mounting interface.
- ISO 4401-05 interface
- D05 mounting configuration
- Larger valve size
- Higher-flow system applications
Core Technical Parameters
*Actual operating pressure depends on the complete model and application conditions.
Simple Flow Control, Compact Hydraulic Integration
Hydraulic fluid enters the selected valve passage and creates pressure on the internal check mechanism.
When the pressure condition is sufficient, the valve opens and allows flow through the intended direction.
When pressure acts in the opposite direction, the check mechanism closes to restrict unwanted hydraulic return flow.
Designed for Practical Hydraulic Engineering
Supports stacked valve installation and compact hydraulic manifold layouts.
Helps prevent unwanted hydraulic flow in the opposite direction.
Available configurations allow designers to adapt the valve to different hydraulic circuits.
Suitable for hydraulic equipment where manifold space and clean piping are important.
Typical Industries & Equipment
Flow management and circuit protection.
Hydraulic cylinder control circuits.
Compact industrial hydraulic systems.
Hydraulic actuator applications.
Mobile hydraulic control systems.
Source Danfoss DGMDC Hydraulic Valves from PinXin
PinXin supports overseas B2B customers with hydraulic component sourcing for OEM production, equipment repair, replacement projects and industrial spare parts procurement.
Buyers can provide the existing valve model, equipment application or hydraulic circuit requirements. PinXin can assist with model identification and quotation preparation.
- OEM replacement
- Wholesale sourcing
- Spare parts supply
- Model verification
- Project quotation
DGMDC-3 / DGMDC-5 FAQ

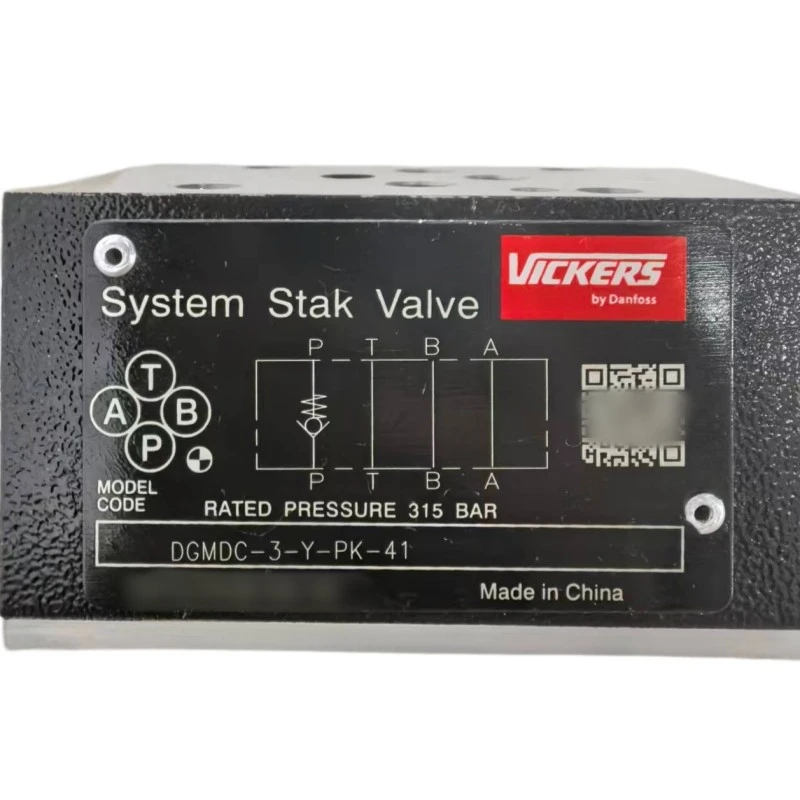

DGMDC-3 is a Danfoss SystemStak direct check valve with an ISO 4401-03 / D03 mounting interface.
DGMDC-5 is a SystemStak direct check valve using an ISO 4401-05 / D05 mounting interface.
It permits flow in the intended direction and restricts reverse flow.
Yes. It can be sourced for hydraulic equipment maintenance, replacement and spare parts applications.
