TMT 315 Orbit Motor 315cc Danfoss Replacement 151Z3011 Hydraulic
The Danfoss TMT 315 orbital motor is a reliable high-torque solution for compact loaders, trenchers, forestry machinery, and other demanding mobile applications. Its established mounting design simplifies replacement and installation.
Featuring 326.3 cm³ displacement, 1,230 Nm continuous torque, and up to 1,865 Nm peak torque, the TMT 315 delivers strong starting performance and smooth operation. It supports up to 125 L/min continuous flow and 250 bar continuous pressure drop.
Available with cylindrical, splined, or tapered shafts, as well as optional flushing valves, holding brakes, and wheel flanges, it offers flexible configuration options. Send us your part number, shaft style, and port standard for a precise quotation.
Send Inquiry
Description
Technical Parameters
Danfoss TMT Series · Replacement Orbital Motor

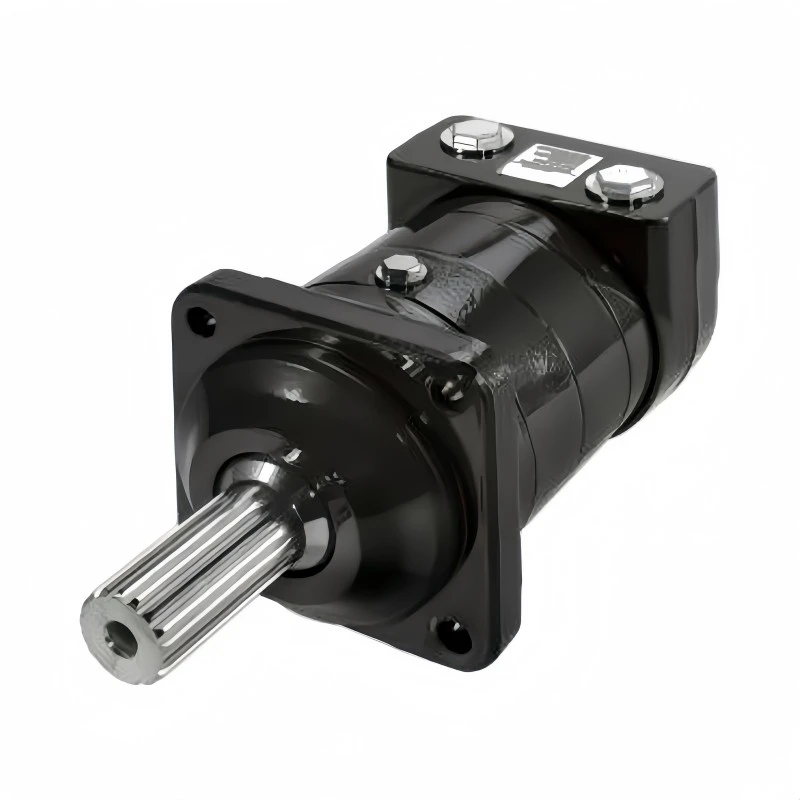

TMT 315 Hydraulic Orbit Motor
326.3 cm³/rev large-frame orbital motor supplied against the original code number. One displacement for both propel circuits and work functions, in open or closed loop systems.
Displacement326.3 cm³/rev
Torque cont.1,230 N·m
Pressure cont./int.250 / 350 bar
Speed cont./int.380 / 460 rpm
Overview
Most 315 enquiries arrive with a number rather than a specification: 151Z3011, 151Z3017 or 151Z3021 already fix the frame size, the shaft style and the port standard. Because the mounting platform is shared across the TMT range, a machine can be returned to service without modifying the flange, the hoses or the shaft coupling.
The 315 frame sits between the faster 250 and the torquier 400 and is often chosen when one displacement has to serve two duties. Constant torque is available over a wide speed range, starting torque is high for a low-speed orbital design, and the motor accepts high return pressure, which keeps plumbing simple on compact machines.
European version, Ø160 mm spigot, cylindrical 40 mm shaft
151Z3017
European version, Ø125 mm spigot, cylindrical 40 mm shaft
151Z3021
Splined 1-1/2 in shaft version for high radial load
Options on the same frame
TMTU - bearingless short motor for integration into a gearbox or hub.

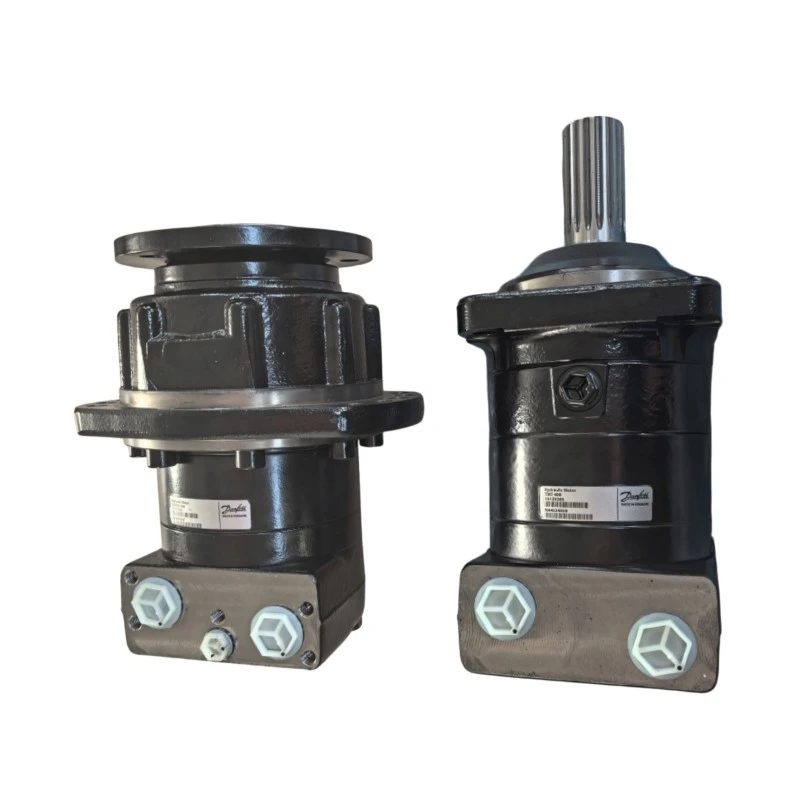

TMTW - wheel motor with mounting flange for direct wheel drive.
TMT FL - integrated holding brake for parking and load holding.
Options - flushing valve, speed sensor, dust seal ring, black paint finish.
Where the 315 is used
Trench compactors
Skid steer loaders
Harvester heads
Beet harvesters
Ordering & support
1. Send the existing code number, nameplate photo or machine serial.
2. We confirm frame size, shaft, flange and port standard against the drawing.
3. Shaft, flange and variant (TMTU, TMTW, TMT FL) are quoted to match the installation.
4. Export packing, shipping documents and technical data sheet prepared with the order.
FAQ
Which part numbers identify a TMT 315?
The standard European build is 151Z3011, the Ø125 mm flange build is 151Z3017 and the splined shaft version is 151Z3021. Other combinations use further codes in the same 151Z30xx block.
Can the motor run in a closed loop circuit?
Yes. TMT motors suit open and closed loop systems; where oil renewal and cooling are needed in a closed circuit, specify the integrated flushing valve version.
What is the maximum continuous pressure?
250 bar pressure drop continuously, 350 bar intermittently and 400 bar at peak. Intermittent operation is limited to 10% of every minute and peak to 1%, and the two ratings cannot be added together.
Quotation for TMT 315
Code, shaft style, port standard and quantity - we reply with price and delivery.
Technical data referenced from Danfoss technical information BC152886483631 (520L0523, March 2016). Intermittent values are permissible for a maximum of 10% of every minute; peak values for a maximum of 1% of every minute, and the two cannot be combined. All trademarks are the property of their respective owners.
