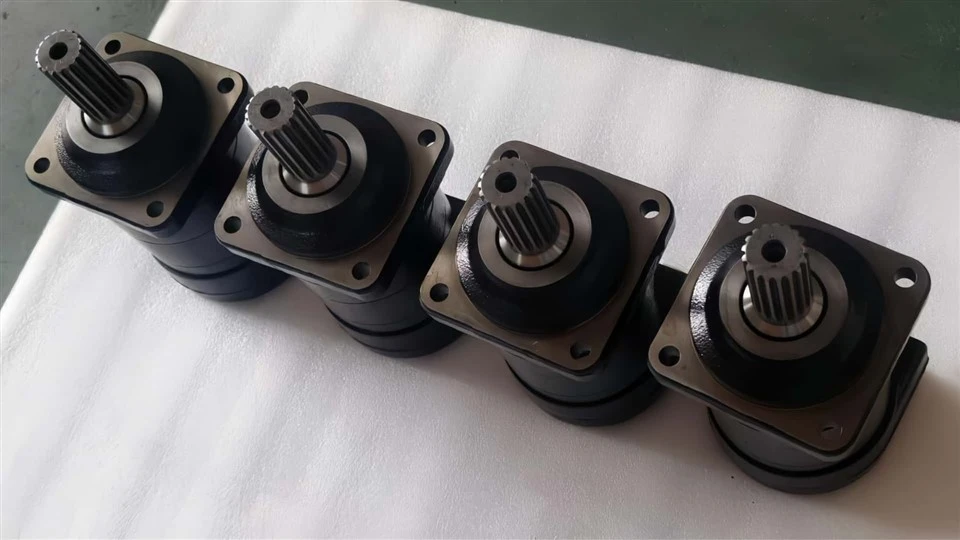

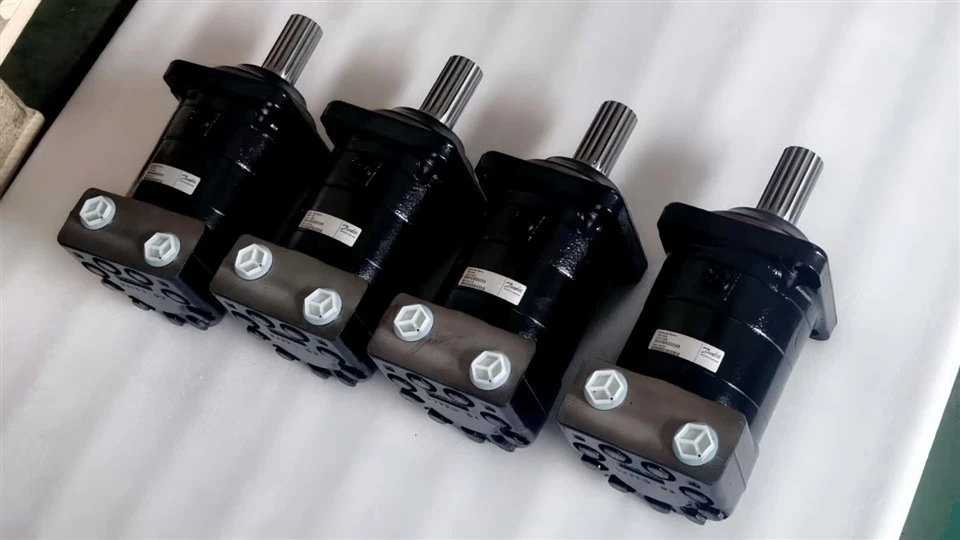

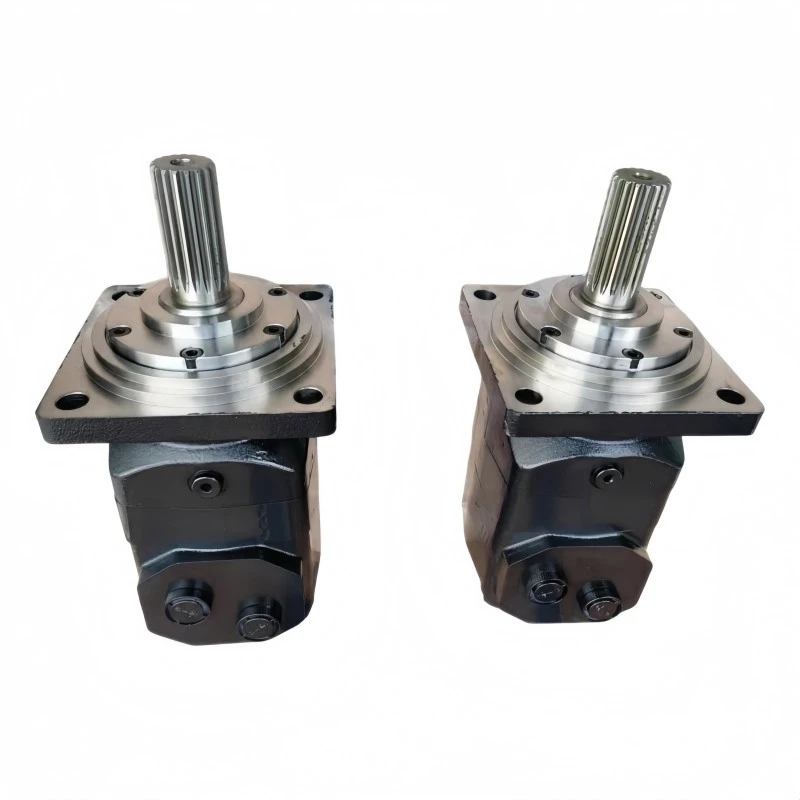

Low Speed High Torque Orbital Motor 400cc Harvester Head 151Z3012

The Danfoss TMT 400 orbital motor is designed for high-torque applications such as forestry harvesters, beet harvesters, heavy compactors, and other demanding mobile machinery.
With 410.9 cm³ displacement, it delivers 1,520 Nm continuous torque, up to 2,355 Nm peak torque, and supports up to 125 L/min continuous flow. Its high starting torque ensures smooth and reliable operation under heavy loads.
Available with different shaft, flange, and port configurations, the TMT 400 can be matched to various machine designs. Send us the old part number or nameplate photo, and we will confirm the correct configuration and quotation.

Send Inquiry

TMT 400

410.9 cm³ orbital motor · 400 cc class

CONTINUOUS TORQUE

1,520 N·m

PEAK TORQUE

2,355 N·m

PRESSURE, INTERMITTENT

350 bar

OUTPUT, INTERMITTENT

51 kW

Fitted to propel and work circuits on

Harvester heads

Beet harvesters

Compactors

Skid steers

Torque

Continuous	1,520 N·m
Intermittent	2,120 N·m
Peak	2,355 N·m
Starting, cont. pressure	1,360 N·m
Starting, int. pressure	1,930 N·m

Pressure

Pressure drop, cont.	250 bar
Pressure drop, int.	350 bar
Pressure drop, peak	400 bar
Inlet, cont. / int. / peak	270 / 370 / 420 bar
Return with drain line	140 / 175 / 210 bar

Speed, flow, output

Speed, cont. / int.	305 / 360 rpm
Flow, cont. / int.	125 / 150 L/min
Output, cont. / int.	37 / 51 kW
Output in hp	50 / 68 hp
Displacement	410.9 cm³ (25.07 in³)
Breakaway, no load	6 bar

Builds are ordered by code rather than by description: 151Z3012 for the plain 40 mm shaft on the 160 mm flange, 151Z3022 for the same flange with a 1-1/2 in splined shaft, 151Z3028 for the splined shaft on the smaller 125 mm flange, and 151Z3062 for the US build with 1-1/16-12 UN ports. Side-port bodies, the 125 mm spigot and the 45 mm tapered shaft are quoted on request.

How long may the motor run at 350 bar?

Up to one tenth of every minute. The 400 bar figure is a peak rating and applies for one percent of each minute; the two allowances run separately and are never added together. Size the average of the duty cycle against the continuous figure.

What oil flow should the pump provide?

125 L/min covers continuous duty at 305 rpm and 150 L/min covers intermittent operation at 360 rpm. Supplying more flow than the frame allows will not raise the shaft speed, because the maximum speed rating governs regardless of the oil available.

Tell us the code you need, or send the drawing the motor must fit. Quotation returns with price and delivery.

Request pricing

Figures come from the Danfoss technical information BC152886483631 / 520L0523 dated March 2016. Intermittent values are valid for a maximum of 10% of each minute and peak values for 1%; they are not additive. Trademarks are used for identification only.
