REXROTH HYDRAULIC DRIVE COMPONENT

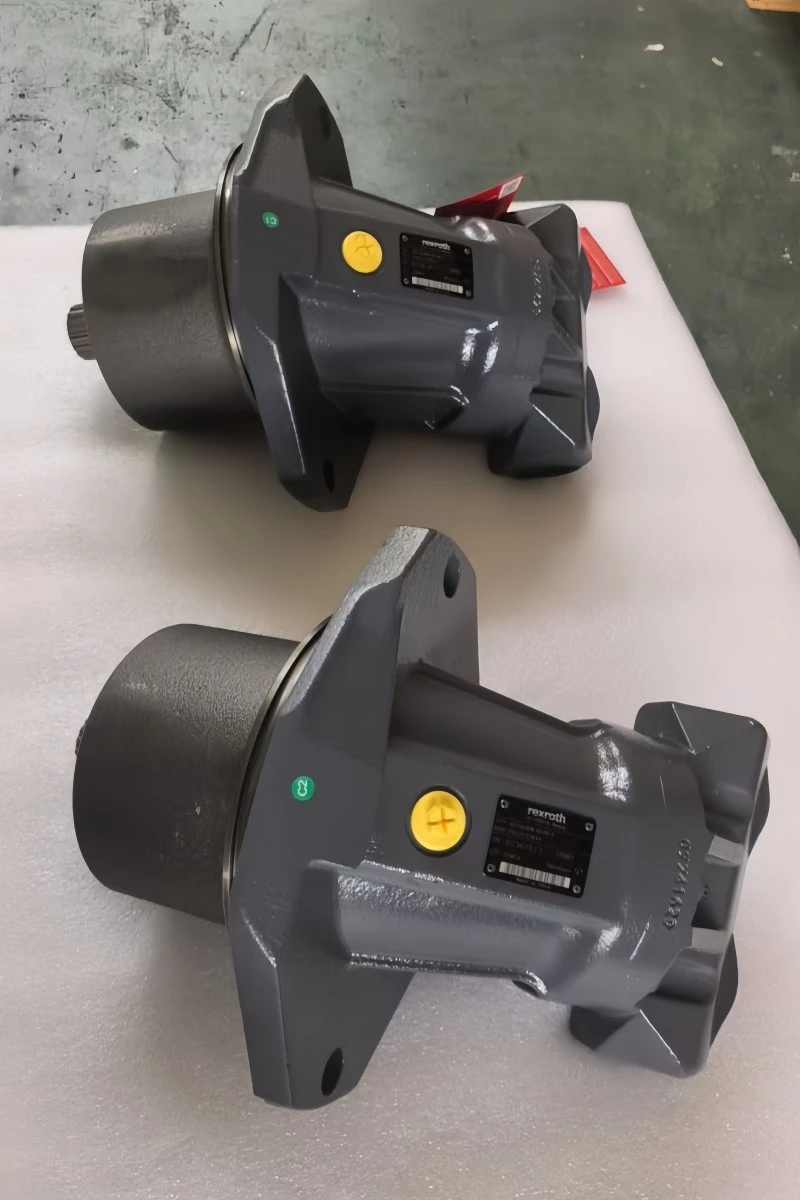

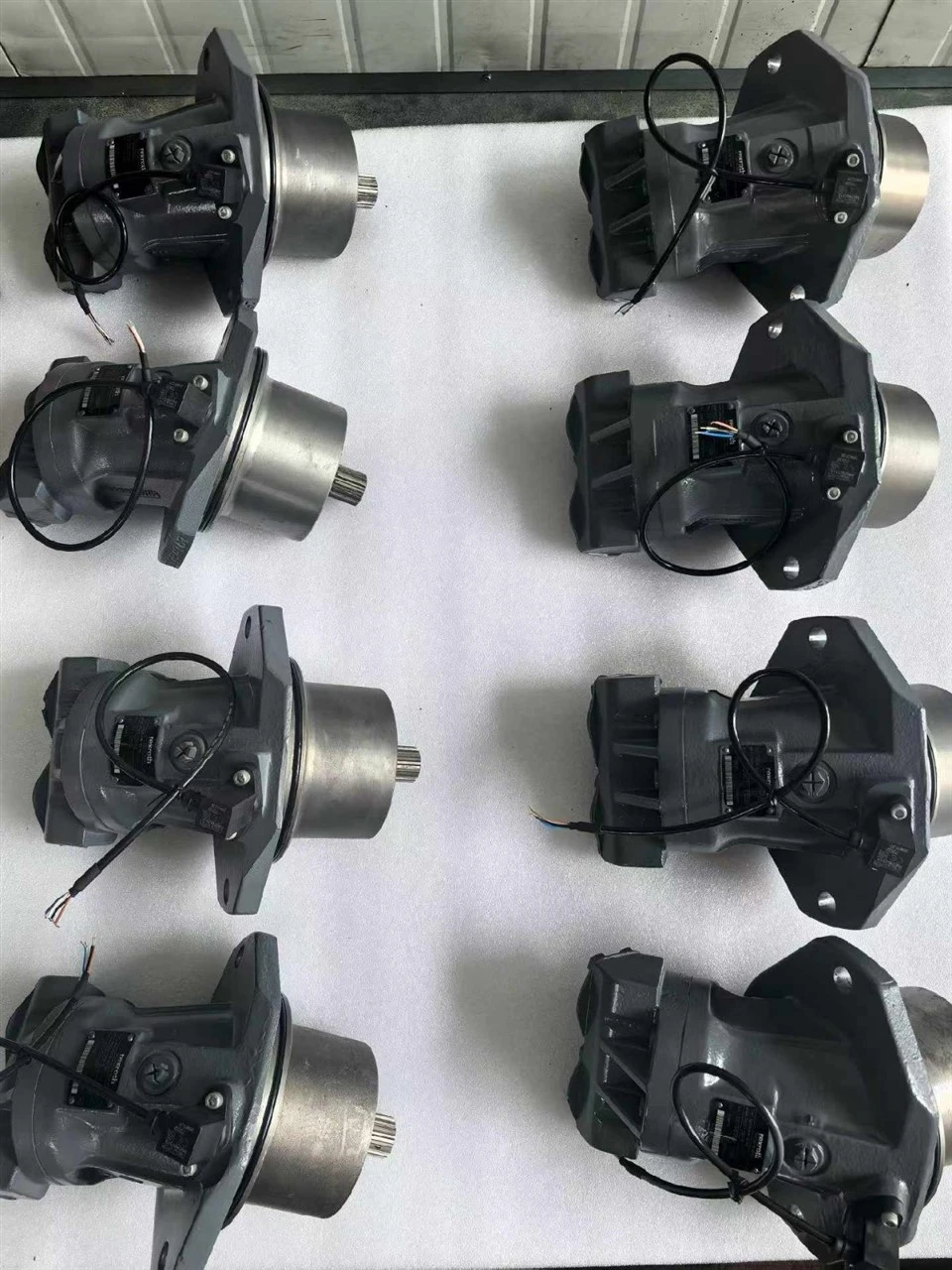

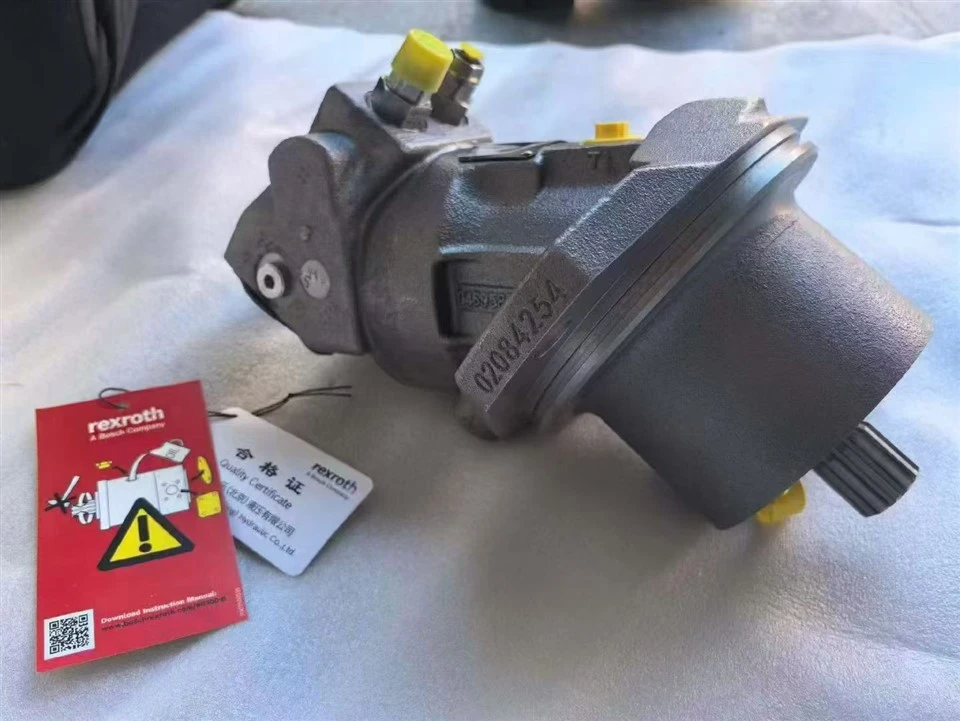

Rexroth A2FE23 Fixed Displacement Axial Piston Motor

A compact plug-in hydraulic motor with approximately 23 cm³/rev displacement, developed for efficient rotary power transmission and integration into demanding hydraulic drive systems.

A2FE23

23 cm³/rev

Fixed Displacement

Plug-in Motor

PRODUCT SIZE

cm³ / rev

Fixed Displacement
Bent-Axis Axial Piston Motor

Product Family

A2FE Series

Displacement

Approx. 23 cm³/rev

Motor Type

Axial Piston

Configuration

Plug-in

Detailed Product Description

A Compact Hydraulic Motor for Integrated Drive Systems

The Rexroth A2FE23 hydraulic motor is a fixed displacement axial piston motor designed to convert hydraulic energy into mechanical rotary power. Its bent-axis construction provides a robust solution for hydraulic applications requiring reliable rotation, compact dimensions and efficient power transmission.

With a nominal displacement of approximately 23 cm³/rev, the A2FE23 is positioned within the compact displacement range of the A2FE family. It can be selected for hydraulic drive systems where the motor must deliver rotary output while fitting into a restricted installation envelope.

A major feature of the A2FE concept is its plug-in installation design. When correctly matched with the mechanical interface, the motor can be integrated into a suitable gearbox or planetary transmission, helping engineers build compact hydraulic drive packages for mobile and industrial machinery.

Engineering Focus

Designed Around Practical Drive Integration

Compact Installation

Helps optimize available installation space.

Hydraulic Power Transmission

Converts hydraulic flow and pressure into rotary output.

Gearbox Compatibility

Suitable for selected gearbox-integrated applications.

Specification Sheet

A2FE23 Technical Parameters

Model: A2FE23

Technical Item	A2FE23	Engineering Description
Product Series	A2FE	Rexroth fixed displacement motor family
Nominal Displacement	Approx. 23 cm³/rev	Fixed geometric displacement
Motor Construction	Bent-Axis Axial Piston	Axial piston hydraulic motor design
Displacement Control	Fixed	Constant displacement configuration
Installation Concept	Plug-in	Intended for suitable integrated drive layouts
Pressure Rating	Model / configuration dependent	Confirm using complete ordering code
Maximum Speed	Model / operating condition dependent	Depends on pressure, displacement and application
Primary Function	Hydraulic Rotary Drive	Hydraulic-to-mechanical power conversion

Important: A2FE23 performance data can vary with the exact series, ordering code, pressure level, rotation direction and configuration. For replacement sourcing, always provide the complete nameplate code rather than the size designation alone.

Performance & Design

What Makes the A2FE23 Practical?

ADVANTAGE 01

Space-Efficient Architecture

The compact A2FE23 format is useful when hydraulic motor installation space is restricted and packaging efficiency is important.

ADVANTAGE 02

Efficient Rotary Output

The axial piston concept is engineered for dependable hydraulic power conversion and continuous rotary drive duties within its specified operating range.

ADVANTAGE 03

Gearbox Integration

The plug-in concept makes the A2FE23 suitable for selected drive assemblies that combine hydraulic motors with mechanical transmission units.

ADVANTAGE 04

Robust Piston Construction

The bent-axis axial piston design is intended for demanding hydraulic environments where reliable mechanical power transmission is required.

ADVANTAGE 05

Fixed Displacement Simplicity

A fixed displacement configuration provides a straightforward solution for systems that do not require variable displacement control.

ADVANTAGE 06

Flexible Hydraulic Applications

The A2FE23 can be evaluated for mobile, construction, material handling and industrial drive systems according to the application requirements.

Application Fields

Built for Mobile & Industrial Hydraulic Drives

A2FE23 is suitable for selected equipment where hydraulic motor output must be transferred through a compact drive or gearbox arrangement.

Construction Machinery

Hydraulic drive systems for construction equipment.

Mobile Equipment

Compact mobile machinery requiring rotary hydraulic power.

Material Handling

Hydraulic drive mechanisms for selected handling machines.

Industrial Hydraulics

Compact hydraulic power transmission applications.

Equipment Compatibility

Typical Equipment Applications

Travel Drives

Compact hydraulic drive arrangements for mobile equipment.

Gearbox Drives

Hydraulic motor and mechanical transmission combinations.

Winch Systems

Selected winding and lifting drive applications.

Compact Machinery

Machinery requiring space-efficient hydraulic motor installation.

Buyer Questions

A2FE23 FAQ

Answers to common questions from hydraulic equipment manufacturers, maintenance companies, distributors and replacement buyers.

01. What is the Rexroth A2FE23?

The A2FE23 is a fixed displacement axial piston hydraulic motor with a bent-axis design and a plug-in configuration intended for compact hydraulic drive applications.

02. What is the displacement of the A2FE23 motor?

The A2FE23 has an approximate nominal displacement of 23 cm³/rev. The complete ordering code should be checked for the exact configuration.

03. Is the A2FE23 a fixed displacement motor?

Yes. A2FE23 belongs to the fixed displacement axial piston motor family and is intended for applications that do not require variable displacement control.

04. What does plug-in hydraulic motor mean?

A plug-in motor is designed for integration into a suitable mechanical drive or gearbox arrangement. This design can reduce packaging requirements compared with a conventional standalone motor installation.

05. Can A2FE23 be used with a planetary gearbox?

It can be used in suitable planetary gearbox applications when the motor mounting, shaft interface, displacement, pressure, speed and torque requirements are correctly matched.

06. Is A2FE23 suitable for hydraulic travel drives?

A2FE23 may be selected for appropriate compact travel drive systems. Final suitability depends on required torque, speed, pressure, gearbox ratio and the complete motor configuration.

07. How do I identify the correct A2FE23 replacement?

Compare the complete original model code, displacement, mounting interface, shaft dimensions, ports, rotation direction and configuration. A clear nameplate photo is recommended when requesting a replacement.

08. Where can I buy an A2FE23 hydraulic motor?

A2FE23 motors can be sourced through professional hydraulic suppliers and distributors. For an accurate quotation, provide the complete model number, required quantity and application information.

Hydraulic Motor Solution

A2FE23 Hydraulic Motor for Global B2B Applications

Rexroth A2FE23 hydraulic motor, A2FE23 axial piston motor, A2FE23 fixed displacement motor, A2FE23 plug-in motor, Rexroth hydraulic motor, 23cc hydraulic motor, 23 cm³ hydraulic motor, fixed displacement axial piston motor, plug-in axial piston motor, hydraulic gearbox motor, travel drive motor, planetary gearbox motor, compact hydraulic motor, hydraulic winch motor and hydraulic motor replacement.

A2FE23 Sourcing Support

Need an A2FE23 Replacement or Technical Match?

Send the complete Rexroth A2FE23 model number, nameplate details or application information. Correct specification matching should be based on the complete ordering code and actual working conditions.
