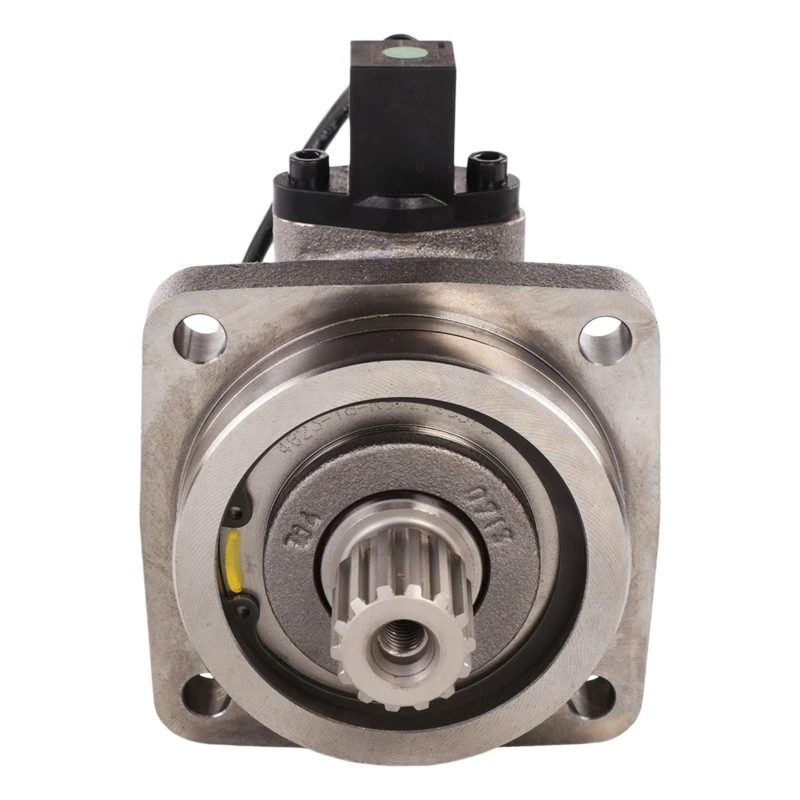

Rexroth A2FM10 10cm³ Bent Axis Piston Motor High Efficiency Hydraulic Drive Motor

Bosch Rexroth A2FM10 10cc Bent Axis Axial Piston Hydraulic Motor

Rexroth A2FM10 is a compact fixed displacement axial piston hydraulic motor designed for efficient hydraulic power conversion. With 10cm³ displacement and a proven bent axis piston structure, this hydraulic motor provides stable rotation, reliable torque output and excellent performance for compact hydraulic systems.

Product Introduction of Rexroth A2FM10 Hydraulic Motor

Bosch Rexroth A2FM10 hydraulic motor belongs to the A2FM series fixed displacement axial piston motor family. The bent axis design enables efficient energy conversion from hydraulic pressure into mechanical rotation, making it suitable for applications requiring compact size, stable speed control and continuous operation.

The A2FM10 piston motor is manufactured with precision-machined rotating components, including cylinder block, piston assembly and valve plate, ensuring low internal leakage, smooth operation and long service life under demanding hydraulic working conditions.

Technical Parameters of A2FM10 Hydraulic Motor

• Product Type: Fixed Displacement Axial Piston Hydraulic Motor
• Model Series: Bosch Rexroth A2FM Series
• Displacement: 10 cm³/rev
• Design: Bent Axis Piston Motor
• Rotation Direction: Bidirectional Rotation
• Working Circuit: Open and Closed Hydraulic Systems
• Pressure Range: High Pressure Hydraulic Application
• Material: High Strength Alloy Steel Components
• Control Method: Fixed Displacement Operation

Advantages and Selling Points of Rexroth A2FM10 Motor

• Compact Hydraulic Drive Design: The small displacement structure allows easy installation in limited spaces while maintaining reliable hydraulic performance.
• High Mechanical Efficiency: Optimized piston and cylinder design reduces energy loss and improves power transmission efficiency.
• Stable Torque Output: Provides consistent rotary force for equipment requiring accurate hydraulic movement.
• Durable Internal Components: Precision machining and wear-resistant materials improve operating reliability.
• Low Maintenance Requirement: Robust construction reduces downtime and extends service intervals.

Applications and Equipment of A2FM10 Hydraulic Motor

Rexroth A2FM10 10cc hydraulic motor is widely used in compact hydraulic systems where efficient rotary power is required. Its small footprint and stable output make it suitable for precision hydraulic applications.

• Compact industrial hydraulic machines
• Hydraulic testing equipment
• Automation machinery
• Small hydraulic winches
• Material handling equipment
• Agricultural machinery auxiliary drives
• Small drilling and positioning equipment

Frequently Asked Questions About Rexroth A2FM10 Hydraulic Motor

Q1: What is Rexroth A2FM10 hydraulic motor?
A: Rexroth A2FM10 is a fixed displacement bent axis axial piston hydraulic motor designed for converting hydraulic energy into rotary mechanical power.

Q2: What is the displacement of A2FM10 motor?
A: The displacement of Rexroth A2FM10 hydraulic motor is 10cm³ per revolution.

Q3: Is A2FM10 a variable displacement motor?
A: No. A2FM10 is a fixed displacement hydraulic motor with constant output displacement.

Q4: What hydraulic systems can use A2FM10 motor?
A: It can be used in open circuit and closed circuit hydraulic systems.

Q5: What are the advantages of A2FM10 compared with ordinary hydraulic motors?
A: It provides higher efficiency, smoother operation and better durability through axial piston technology.

Q6: Can A2FM10 hydraulic motor rotate in both directions?
A: Yes. The motor supports bidirectional rotation according to hydraulic system design.

Q7: What equipment commonly uses A2FM10 motor?
A: It is commonly applied in compact machinery, automation equipment, test systems and auxiliary hydraulic drives.

Q8: How to maintain Rexroth A2FM10 hydraulic motor?
A: Regular hydraulic oil inspection, contamination control and proper sealing maintenance can extend service life.
